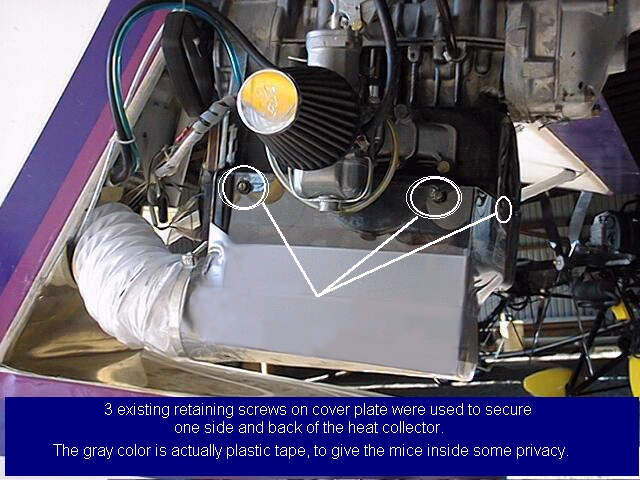

Here's a side
view showing the three existing Rotax cover screws that were used to secure
the plastic (lexan) heat collector. The entire box is made
of scrap lexan that was cut out with scissors. Most of it is
actually a single piece, bent along the lines to form the right
angles, then taped with SNOWBOARD REPAIR TAPE to strengthen the bends.
Snowboard repair tape is a thick, clear tape
that is incredibly pliable even in very cold weather and is very sticky.
I think it's fantastic. I bought a role of it that was a foot wide,
so I can cut it any way I want to.
|
 |

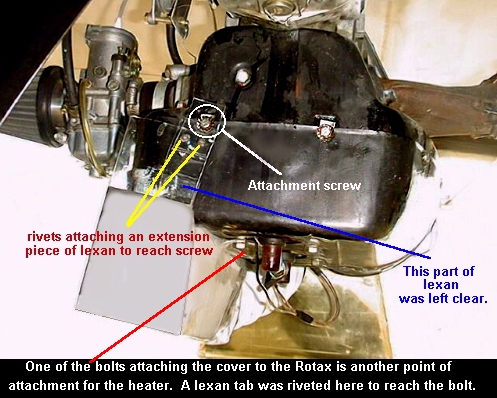

View from rear.
Back is attached only by one screw. The larger picture (click the
little one) shows better where I've used one of the head bolts to attach
the heater in the area of the spark plugs.
I taped only the bottom portion of the heat collector because I was too anxious to go flying and, besides, taping clear lexan is boring. |
 |

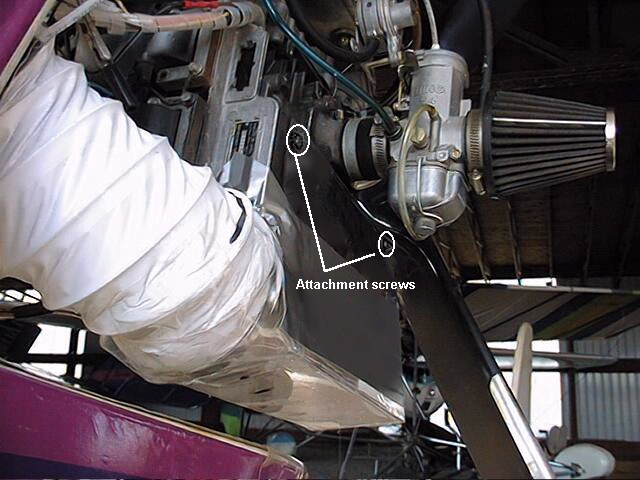

Looking up from
front area. Just another view showing where the side of the collector
is attached to the Rotax using two of the existing motor cover screws.
The cheapy dryer hose is both clamped and taped to the lexan box. I formed a cylinder from a separate piece of lexan as a hose attachment and then taped it to the open end of the collector box with some of that snowboard tape. Actually, most of Cloud Dancer is held together with it. Just kidding. |
 |

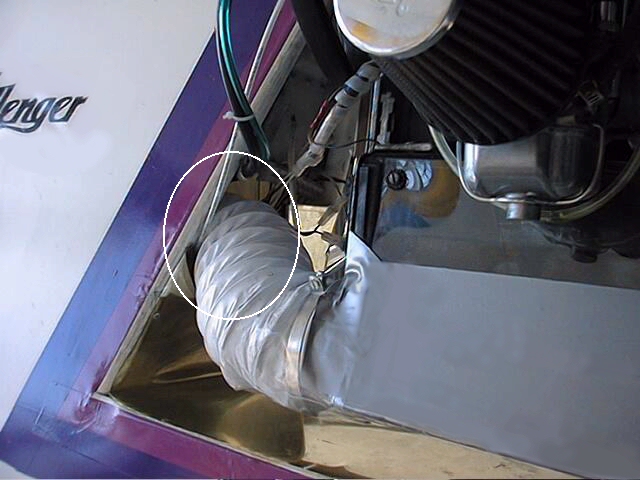

The cheapy dryer
duct hose enters the cockpit here. I cut out a half-moon shaped opening
in the aluminum sheet and applied a strip of vinyl edging . . . the type
you buy to protect car door edges. This keeps vibration
from allowing the aluminum to cut through the plastic hose.
There was just enough room here for the ducting to enter alongside all the wiring and the fuel lines. |
 |

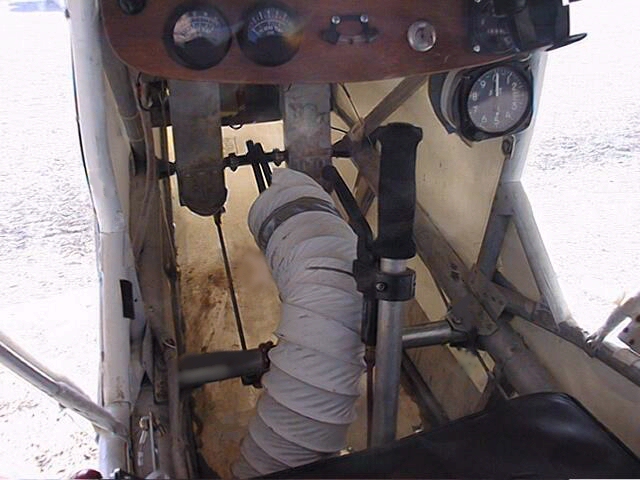

Doesn't look
like it, but there's plenty of room to pull the dryer hose up past the
seat and suspend it where it will be positioned between your legs.
The stick has full clearance because the flexible hose is, well, flexible.
It moves an inch or two either way, or back and forth, as the stick moves.
This makes for comfy feetsies and the heat seems to build in the cockpit better when it moves from the front to the back. With both doors on, my CI gets cozy! |
